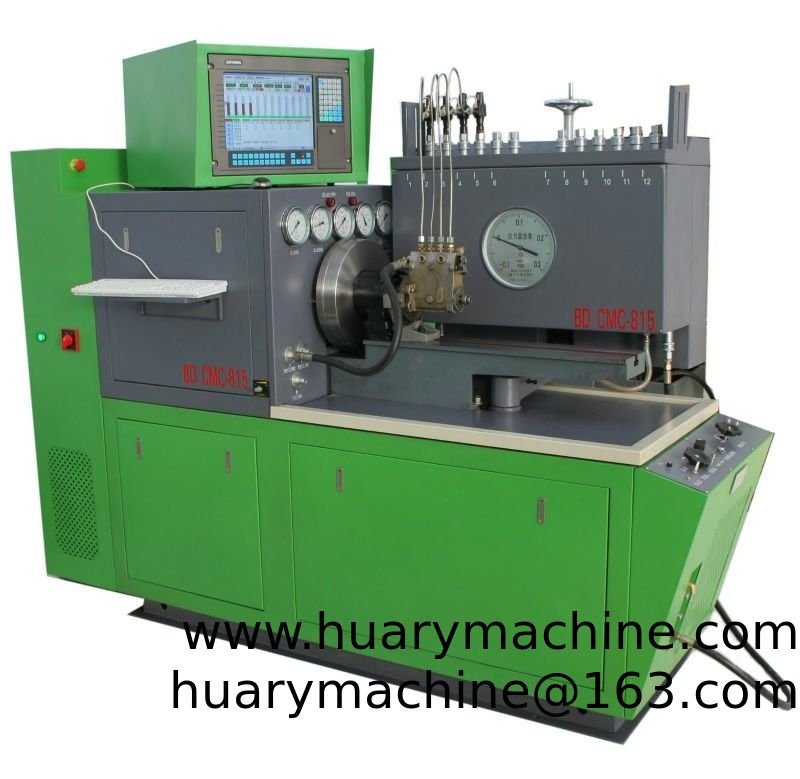

LBD-CMC815 oil quantity digital display test bench is successfully developed with mature technique, high measurement precision and high reliability. Surveys oil mass through high accuracy gathering sensing system. Fills the similar products blank and represents the advanced technology in our country.
Main functions and characters
1. Oil quantity is measured and displayed in real time by Taiwan ADVANTECH lndustrial Controlled Computer.
2. Windows operating system.
3. Rotation speed, count, temperature, rack travel, air pressure, advance angle and oil delivery interval angle are measured and controlled by Taiwan ADVANTECH industrial Controlled Computer in real time, then displayed by 15"LCD.
4. Having the function of oil level indication and filter blocking alarm.
5. Automatically generating and displaying speed characteristics curve.
6. Automatically generating and displaying oil delivery characteristics curve.
7. Automatically generating and displaying advance device characteristics curve.
8. Built-out independent high efficiency cooling system.
9. May save, revise the injection pump debugging data, and generate the oil pump database
10.May search assign oil pump’s debugging data in the oil pump’s database rapidly.
11.Bringing air resource itself
12.All test data may generate reports and print
13.Changing frequency changing rotation speed, small fall of the rotation and large torque.
